EJECUCIÓN DE UN PROGRAMA MINIMIZADO EN EL SYS TRAY

Formulario (que es el programa en si) y un menú

Option Explicit

Const MAX_TOOLTIP As Integer = 64

Const NIF_ICON = &H2

Const NIF_MESSAGE = &H1

Const NIF_TIP = &H4

Const NIM_ADD = &H0

Const NIM_DELETE = &H2

Const WM_MOUSEMOVE = &H200

Const WM_LBUTTONDOWN = &H201

Const WM_LBUTTONUP = &H202

Const WM_LBUTTONDBLCLK = &H203

Const WM_RBUTTONDOWN = &H204

Const WM_RBUTTONUP = &H205

Const WM_RBUTTONDBLCLK = &H206

Private Type NOTIFYICONDATA

cbSize As Long

hwnd As Long

uID As Long

uFlags As Long

uCallbackMessage As Long

hIcon As Long

szTip As String * MAX_TOOLTIP

End Type

Private nfIconData As NOTIFYICONDATA

Private Declare Function Shell_NotifyIcon Lib "shell32.dll" Alias "Shell_NotifyIconA" (ByVal dwMessage As Long, lpData As NOTIFYICONDATA) As Long

Private Declare Function SetForegroundWindow Lib "user32" (ByVal hwnd As Long) As Long

'***Constantes de Ventana***

Private Const WIN_NORMAL = 1 'Abrir Normal

Private Const WIN_MAX = 3 'Abrir Maximizada

Private Const WIN_MIN = 2 'Abrir Minimizada

Private Declare Function apiShellExecute Lib "shell32.dll" _

Alias "ShellExecuteA" _

(ByVal hwnd As Long, _

ByVal lpOperation As String, _

ByVal lpFile As String, _

ByVal lpParameters As String, _

ByVal lpDirectory As String, _

ByVal nShowCmd As Long) _

As Long

'***Codigo de Errores***

Private Const ERROR_SUCCESS = 32&

Private Const ERROR_NO_ASSOC = 31&

Private Const ERROR_OUT_OF_MEM = 0&

Private Const ERROR_FILE_NOT_FOUND = 2&

Private Const ERROR_PATH_NOT_FOUND = 3&

Private Const ERROR_BAD_FORMAT = 11&

Private Sub Form_Load()

AddIcon

Me.Hide

End Sub

Private Sub AddIcon()

'

' Añade el icono de la aplicacion al Sys Tray.

'

' Parm 1 = Dispone a la ventana para recibir mensaje

' lo asocia con un icono en la barra de tareas.

' Parm 2 = Icono a mostrar.

' Parm 3 = Dispone el icono a mostrar.

' Parm 4 = Texto que aparece cuando el cursor se mueve por encima del icono.

'

With nfIconData

.hwnd = Me.hwnd

.uID = Me.Icon

.uFlags = NIF_ICON Or NIF_MESSAGE Or NIF_TIP

.uCallbackMessage = WM_MOUSEMOVE

.hIcon = Me.Icon.Handle

.szTip = "Proyecto Minimizar SysTray" & vbNullChar

.cbSize = Len(nfIconData)

End With

Call Shell_NotifyIcon(NIM_ADD, nfIconData)

End Sub

Private Sub cmdQuit_Click()

Unload Me

End Sub

Private Sub Form_MouseMove(Button As Integer, Shift As Integer, X As Single, Y As Single)

Dim lMsg As Single

'

' Determina el evento asociado al System Tray.

' Clickamos el boton izquierdo para desplegar el Mensaje.

' El botón derecho crea una instancia a un objeto

' El código ActiveX invoca un metodo para mostrar un mensaje.

'

lMsg = X / Screen.TwipsPerPixelX

Select Case lMsg

Case WM_LBUTTONUP

mnu_options.Visible = False

Case WM_RBUTTONUP

Case WM_MOUSEMOVE

Case WM_LBUTTONDOWN

mnu_options.Visible = False

Case WM_LBUTTONDBLCLK

Case WM_RBUTTONDOWN

mnu_options.Visible = True

SetForegroundWindow Me.hwnd

PopupMenu mnu_options, , , , mnu_addcomment 'will be shown in bold

Case WM_RBUTTONDBLCLK

'whichever exe you may want to call

Case Else

'mnu_options.Visible = False

End Select

End Sub

Private Sub mnu_opcion1_Click()

WindowState = vbNormal

Visible = True

End Sub

Private Sub mnu_opcion2_Click()

Me.Hide

End Sub

Private Sub mnu_opcion4_Click()

Unload Me

End Sub

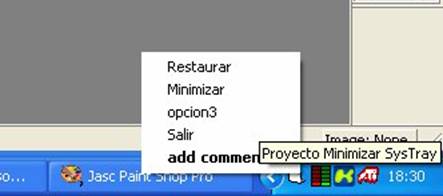

'Dejamos que el menu aparezca en sobre el icono

'En el menú deberia haber alguna opción para salir de la aplicación

'---------------------------

'Crea un Tray del programa, añade el icono para poder ejecutar y restaurar la aplicación desde la barra del Tray

'El Tray se ejecuta automaticamente al iniciar la aplicación

'

'
