FRACTAL DE MANDELBROT:

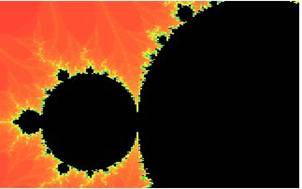

Resultado del applet;
Ampliación realizada por el applet
Creamos una aplicación de applet con una pagina page1.html y un código en java en un fichero Applet1.java.
Introducimos el siguiente código:
import java.awt.*;
import java.applet.*;
import java.awt.event.*;
public class Applet1 extends Applet implements MouseListener,
MouseMotionListener
{
private final int MAX = 256; // max iteracciones
private final double SX = -2.025; // valor real inicial
private final double
SY = -1.125; // valor imaginario inicial
private final double
EX = 0.6; // valor real final
private final double EY = 1.125; // valor real imaginario
private static int x1, y1,
xs, ys, xe, ye;
private static double
xstart, ystart, xende, yende, xzoom, yzoom;
private static boolean
action, rechteck, fertig;
private static float xy;
private Image bild;
private Graphics g1;
private Cursor c1, c2;
public void init() // all
instances will be prepared
{
fertig =
false;
addMouseListener(this);
addMouseMotionListener(this);
c1 = new Cursor(Cursor.WAIT_CURSOR);
c2 = new Cursor(Cursor.CROSSHAIR_CURSOR);
x1 =
getSize().width;
y1 = getSize().height;
xy =
(float)x1 / (float)y1;
bild =
createImage(x1, y1);
g1 = bild.getGraphics();
fertig =
true;
}
public void destroy() //
delete all instances
{
if (fertig)
{
removeMouseListener(this);
removeMouseMotionListener(this);
= null;
g1 = null;
c1 = null;
c2 = null;
System.gc();
// garbage collection
}
}
public void start()
{
action =
false;
rechteck =
false;
startwerte();
xzoom =
(xende - xstart) / (double)x1;
yzoom = (yende -
ystart) / (double)y1;
mandelbrot();
}
public void stop()
{
}
public void paint(Graphics
g)
{
update(g);
}
public void update(Graphics
g)
{
g.drawImage(bild,
0, 0, this);
if (rechteck)
{
g.setColor(Color.white);
if
(xs < xe)
{
if (ys < ye) g.drawRect(xs, ys, (xe - xs), (ye - ys));
else g.drawRect(xs, ye, (xe - xs), (ys - ye));
}
else
{
if (ys < ye) g.drawRect(xe, ys, (xs - xe), (ye - ys));
else g.drawRect(xe, ye, (xs - xe), (ys - ye));
}
}
}
private void mandelbrot() //
calculate all points
{
int x, y;
float h, b,
alt = 0.0f;
action =
false;
setCursor(c1);
showStatus("Mandelbrot-Set
will be produced - please wait...");
for (x = 0; x
< x1; x+=2)
for (y = 0; y < y1; y++)
{
h = punktfarbe(xstart + xzoom * (double)x, ystart + yzoom *
(double)y); // color value
if (h != alt)
{
b
= 1.0f - h * h; // brightnes
g1.setColor(Color.getHSBColor(h, 0.8f, b));
alt = h;
}
g1.drawLine(x, y, x + 1, y);
}
showStatus("Mandelbrot-Set
ready - please select zoom area with pressed mouse.");
setCursor(c2);
action =
true;
}
private float
punktfarbe(double xwert, double ywert) // color value from 0.0 to 1.0 by
iterations
{
double r =
0.0, i = 0.0, m = 0.0;
int j = 0;
while ((j
< MAX) && (m < 4.0))
{
j++;
m = r * r - i * i;
i = 2.0 * r * i +
ywert;
r = m + xwert;
}
return
(float)j / (float)MAX;
}
private void startwerte() //
reset start values
{
xstart = SX;
ystart = SY;
xende = EX;
yende = EY;
if
((float)((xende - xstart) / (yende - ystart)) != xy )
xstart
= xende - (yende - ystart) * (double)xy;
}
public void
mousePressed(MouseEvent e)
{
e.consume();
if (action)
{
xs
= e.getX();
ys
= e.getY();
}
}
public void
mouseReleased(MouseEvent e)
{
int z, w;
e.consume();
if (action)
{
xe
= e.getX();
ye
= e.getY();
if
(xs > xe)
{
z =
xs;
xs = xe;
xe = z;
}
if
(ys > ye)
{
z =
ys;
ys = ye;
ye = z;
}
w = (xe - xs);
z = (ye - ys);
if
((w < 2) && (z < 2)) startwerte();
else
{
if (((float)w > (float)z * xy)) ye = (int)((float)ys +
(float)w / xy);
else xe = (int)((float)xs + (float)z * xy);
xende = xstart + xzoom * (double)xe;
yende = ystart + yzoom * (double)ye;
xstart += xzoom * (double)xs;
ystart += yzoom * (double)ys;
}
xzoom
= (xende - xstart) / (double)x1;
yzoom
= (yende - ystart) / (double)y1;
mandelbrot();
rechteck
= false;
repaint();
}
}
public void
mouseEntered(MouseEvent e)
{
}
public void
mouseExited(MouseEvent e)
{
}
public void
mouseClicked(MouseEvent e)
{
}
public void
mouseDragged(MouseEvent e)
{
e.consume();
if (action)
{
xe
= e.getX();
ye
= e.getY();
rechteck
= true;
repaint();
}
}
public void mouseMoved(MouseEvent e)
{
}
public String
getAppletInfo()
{
return
"fractal.class - Mandelbrot Set a Java Applet by Eckhard Roessel
2000-2001";
}
}
